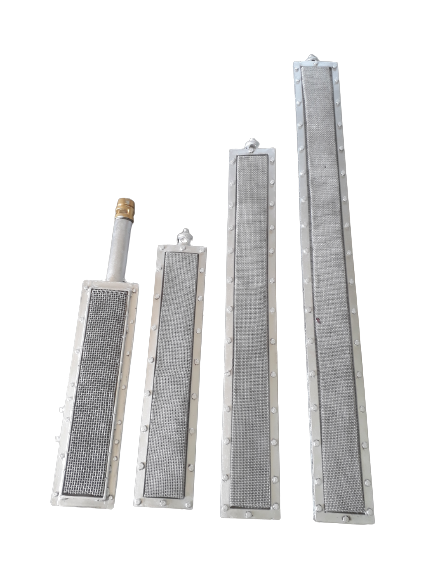

Technical Specification Of Gas Infra-red Radiant Burners

Model No.	Dimension						Optimum Worming Pressure		LPG Consumption Per Hour	Rated Heat Output
	Length		Width		Height
	mm	Inch	mm	Inch	mm	Inch
							Kg/cm2	Psig.	KGs	Kcal/Hr.
IB 60	488	19.0	127	5.0	90	3.5	0.035	0.5	0.38	4,280
IB 75	610	24.0	127	5.0	102	4.0	0.07	1.0	0.76	8,560
IB 75	488	19.0	127	5.0	102	4.0	0.07	1.0	0.76	8,560
IB 75	488	19.0	127	5.0	102	4.0	0.07	1.0	0.76	8,560
IB 75	488	19.0	127	5.0	102	4.0	0.07	1.0	0.76	8,560

NOTE :The pressure of gas will be more, gas consumption and heat output more But the gas pressure can’t be increased more than 2.0 psig, otherwise some flame will come outside the radiation system.

USES : Gas operated Infra-Red Radiant Burners, can be adapted to almost all purposes where radiant heat is required, Industrial uses include Brooding, Curing, Drying, Food Processing, Metal Fabricating and Finishing,Textile Drying, Weld Pre-heating, Roto-printing of Paper/Cloth, etc.

CUSTOM- BUILT I. R. RADIANT BURNERS ALSO AVAILABLE AS PER THE SPECIFIC REQUIREMENTS.

INFRA-RED RADIANT BURNERS ARE ALSO AVAILABLE WITH ELECTRICAL SPARKING SYSTEM, BURNER SEQUENCE CONTROLLER, SOLENOID VALVE, GAS PANEL, ELECTRICAL CONTROL PANEL, ETC. WE ARE ALSO MANUFACTURING INFRARED OVEN OF DIFFERENT TYPES INCLUDING CONTINUOUS CONVEYOR.

Often costs for Infra-Red ovens are comparable to convention ovens, and they can be less expensive. In general, the overall size of the Infra-Red Oven will be smaller than a comparable convection oven, resulting in savings in materials and fabrication costs.Individual components of an Infra-Red Oven may be more expensive than those of a convection oven. For example, Electric Infra-Red emitters may cost more than a Gas Burner. Another factor to consider is the ability to control Infra-Red, which results in more efficient use of electric or gas.
