Specification Of Flexible Hot Air Blower

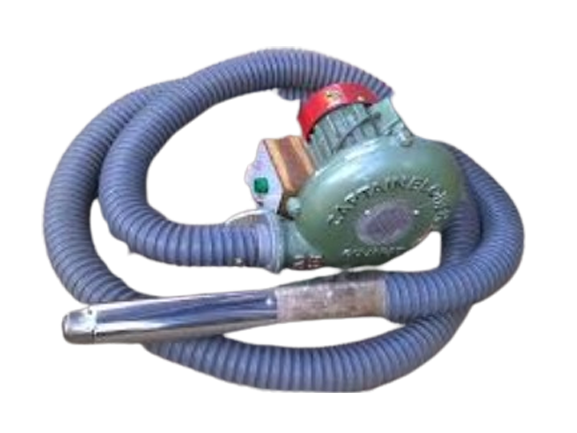

Flexible Hot Air Blower, low pressure, Die Cast Aluminium Body Blower with Air Inlet Dumper for high/ Low air feeding, Flexible Pipe Length 6 ft., Temperature range as per requirement of customer. Outlet Nozzle dia. 50mm SS or chrome plated or as per requirement. Temperature variable setting by Air Inlet Dumper. You can use continuously for round the clock without any interruption.Flexible Hot Air Blower, low pressure, Die Cast Aluminium Body Blower with Air Inlet Dumper for high/ Low air feeding, Flexible Pipe Length 6 ft., Temperature range as per requirement of customer. Outlet Nozzle dia. 50mm SS or chrome plated or as per requirement. Temperature variable setting by Air Inlet Dumper. You can use continuously for round the clock without any interruption.



Details Of Flexible Hot Air Blower With Flow And Heater Capacity

Sr.no	Air Blower(With Input Dumper Model)	Motor H.P	RPM	VOLT	Approx. CFM output	Heater Capacity KW	Temp.RangeOC
1	25	0.25	2800	210-230	50-100	2.0	100-400
2	50	0.50	2800	210-230	100-200	3.0	100-400
3	60	0.75	2800	210-230	150-250	3.5	100-400
4	70	1.0	2800	210-230	300-400	4.0	100-400

If you required 3 phase motor for 0.75 and above capacity, clear order required.

Our blower is applicable for Shrink Packaging/Tubing, Bending of thermoplastics, Moisture Drying, Shrink Bus bar, Pre-heat flux, Activate & Cure Epoxies, Remove Dents in fibreglass, Dry Silk Screens/Ink/Circuit Boards, Mount over conveyor lines, Defrost Freezers/frozen coils, Removing Tiles from Walls, Sticking Tiles on Walls and Other various industries and applications.
